CORONA STATIONS

Scana Corona stations are designed according to customer requirements.

Various standard procedures and parts are combined with new developments as needed - this allows for rapid response in case of high dynamics with respect to individual customer requirements.

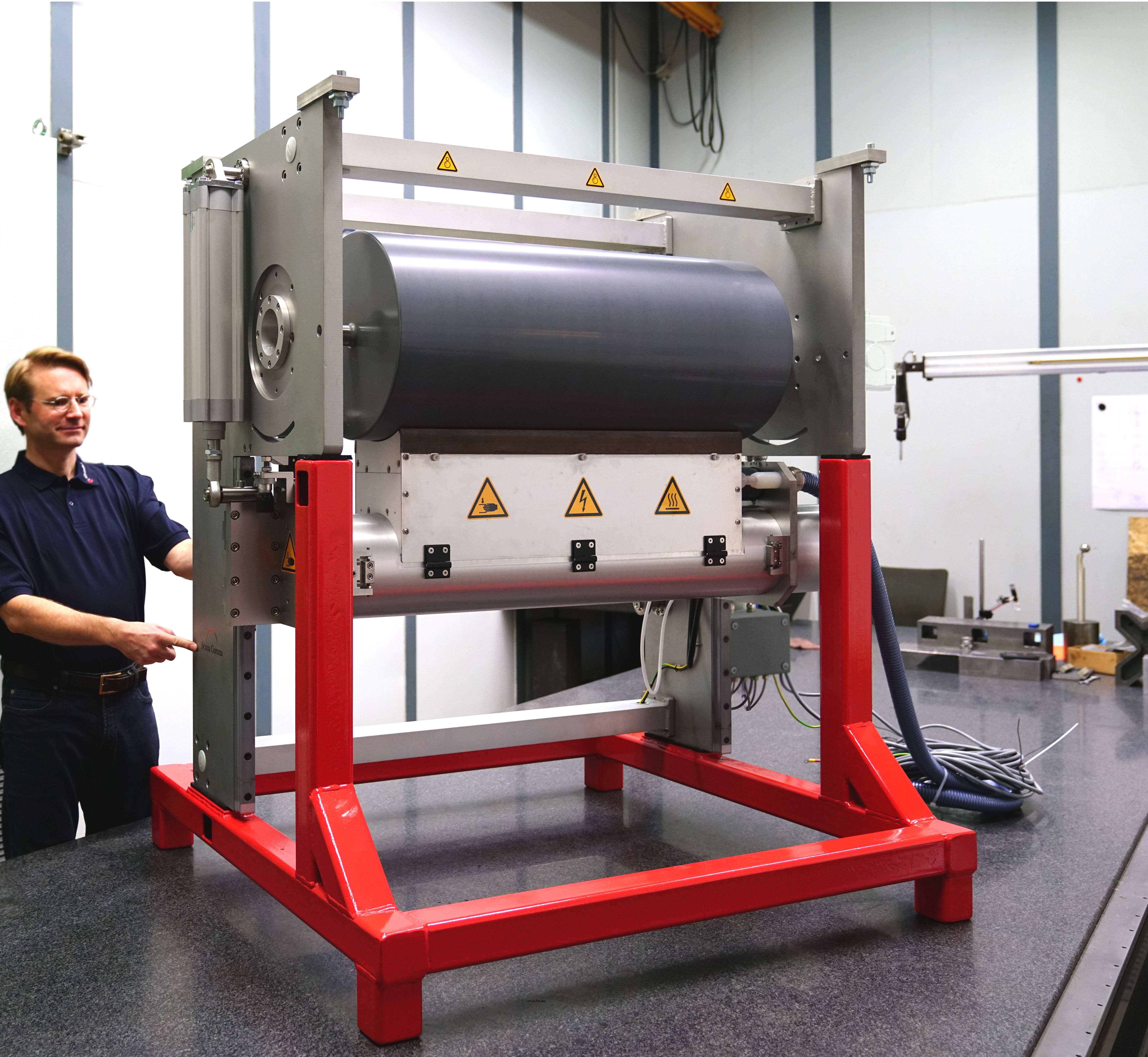

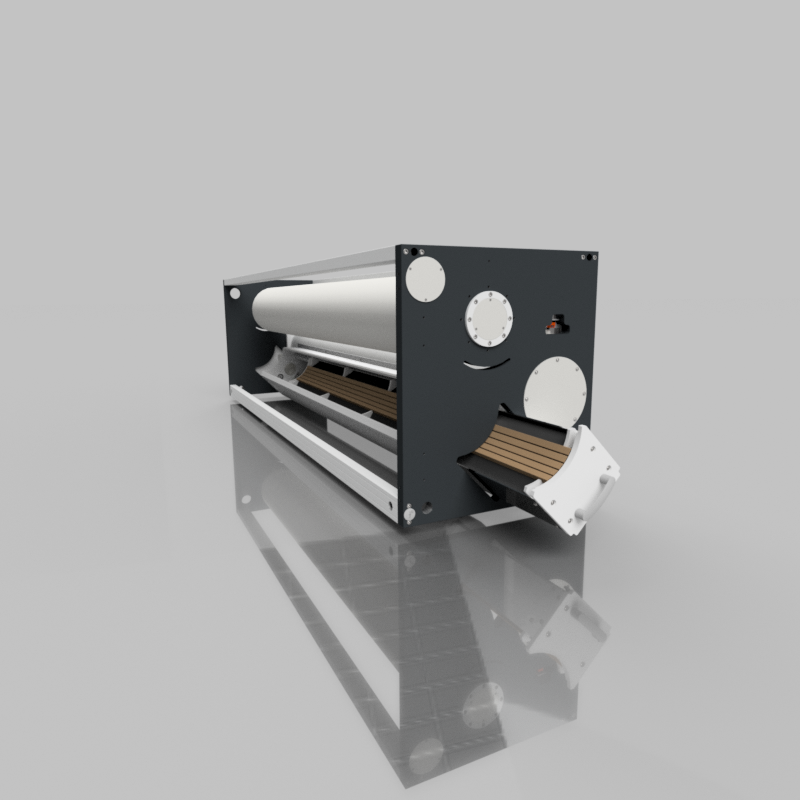

SCS-R SERIES WITH SWIVEL ELECTRODE HOUSING

In case of SCS-R series the electrode housing opens swivelling in the direction of the web. The electrode system has an Easy-Open function. When contacting the inlet side with e.g. a web ball, the electrode housing immediately swivels open.

Standard series data:
Version: single-sided, double-sided, reciprocal
Electrode system: various sizes
Airflow: Asymmetric extraction, active supply air
Electrodes: Ceramic profile CP, Metal profile MP
Number of ceramic electrodes: up to 6 pieces
Number of metal electrodes: up to 7 pieces
Corona roll: up to Ø300 mm
Web width: up to 4 m
Web speed: up to 600 m/min
Electrode pack power: Up to 6 kW/m

Standard options:
Deflecting rolls, pressing rolls, roll drive

Standard control functions:
Web break quick opening, splice quick opening, easy-open function

Application examples:
Film production: Blown Film, Cast Film
Film processing: Printing, laminating, coating

Materials:
Plastic films such as PP, PE, PET, PA, PU, PVC, metallized films,
metal films, foam films made of PP, PE, PS, paper

Further options and differing data on request.

Contact

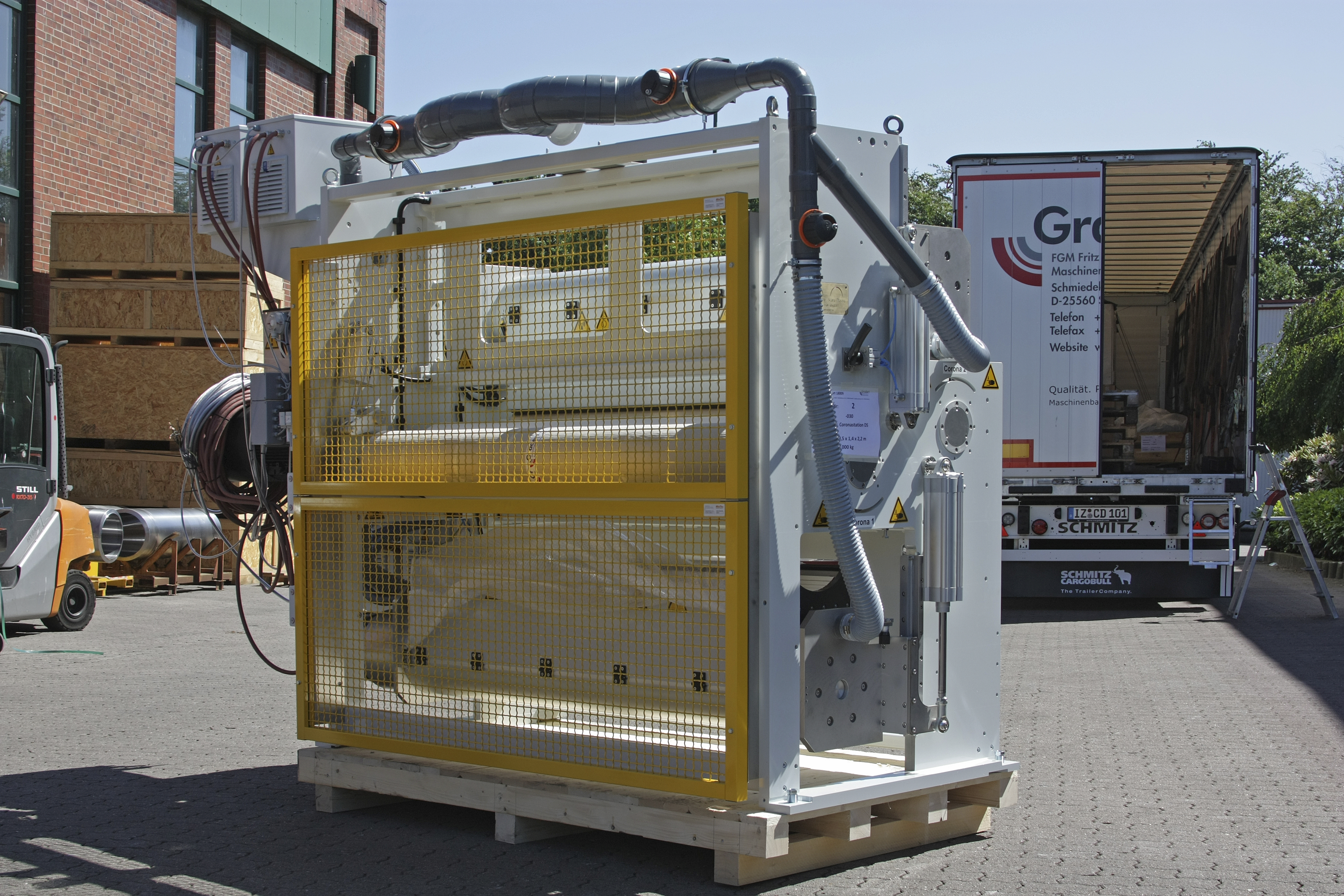

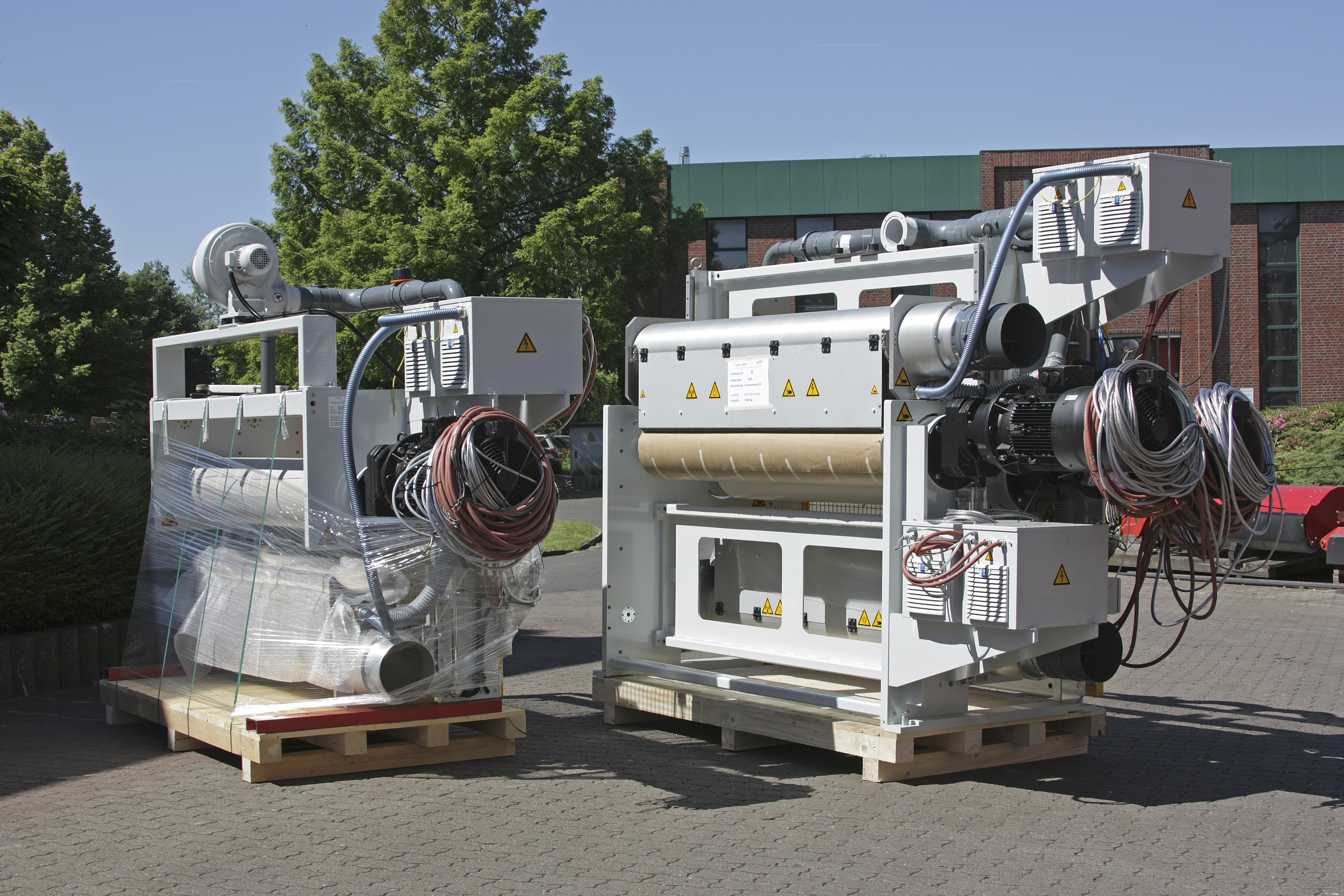

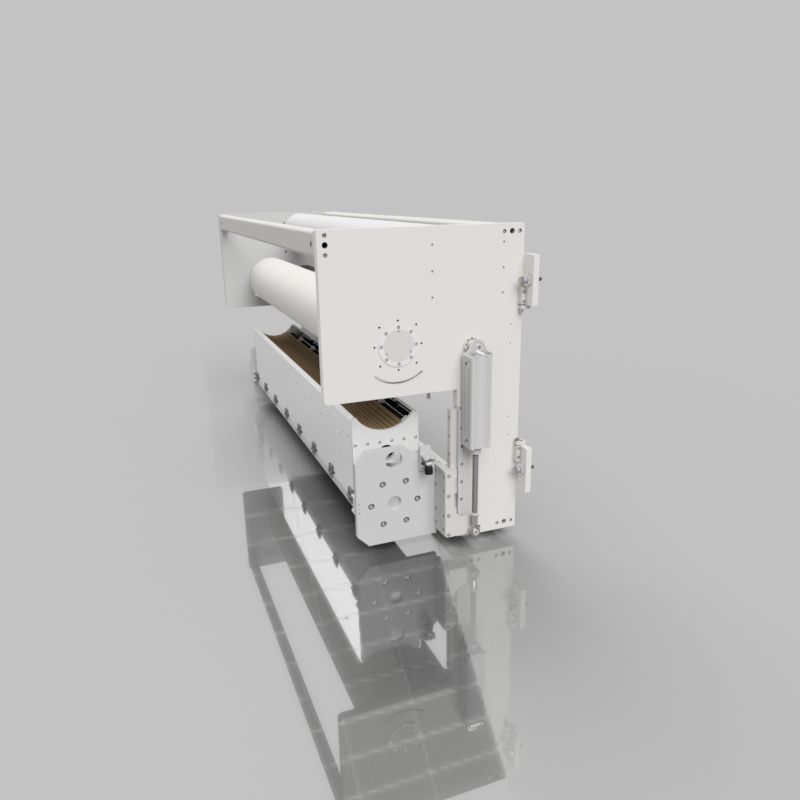

SCS-P SERIES – FOR LARGE ELECTRODE PACKS

SCS-P series with parallels to corona roll opening electrode systems are suitable for large electrode packs. SCS-R 300 station can be used e.g. as alternative for a swivelling double electrode. The electrode housings are designed symmetric and easily accessible for maintenance purposes. The series can be supplied as SCS-P 200 and SCS-P 300 as standard. Other combinations of electrode system and Corona rolls are possible.

Standard series data:
Version: single-sided, double-sided, reciprocal
Electrode system: various sizes
Airflow: Asymmetric extraction, active supply air
Electrodes: Ceramic profile CP, Metal profile MP
Number of ceramic electrodes: up to 10 pieces
Number of metal electrodes: up to 10 pieces
Corona roll: up to Ø300 mm
Web width: up to 4 m
Web speed: up to 600 m/min
Electrode pack power: Up to 10 kW/m

Standard options:
Deflecting rolls, pressing rolls, roll drive

Standard control functions:
Web break quick opening, splice quick opening

Application examples:
Film production: Blown Film, Cast Film
Film processing: Printing, laminating, coating

Materials:
Plastic films such as PP, PE, PET, PA, PU, PVC, metallized films, metal films,
Foam film from PP, PE, PS, paper

Further options and differing data on request.

Contact

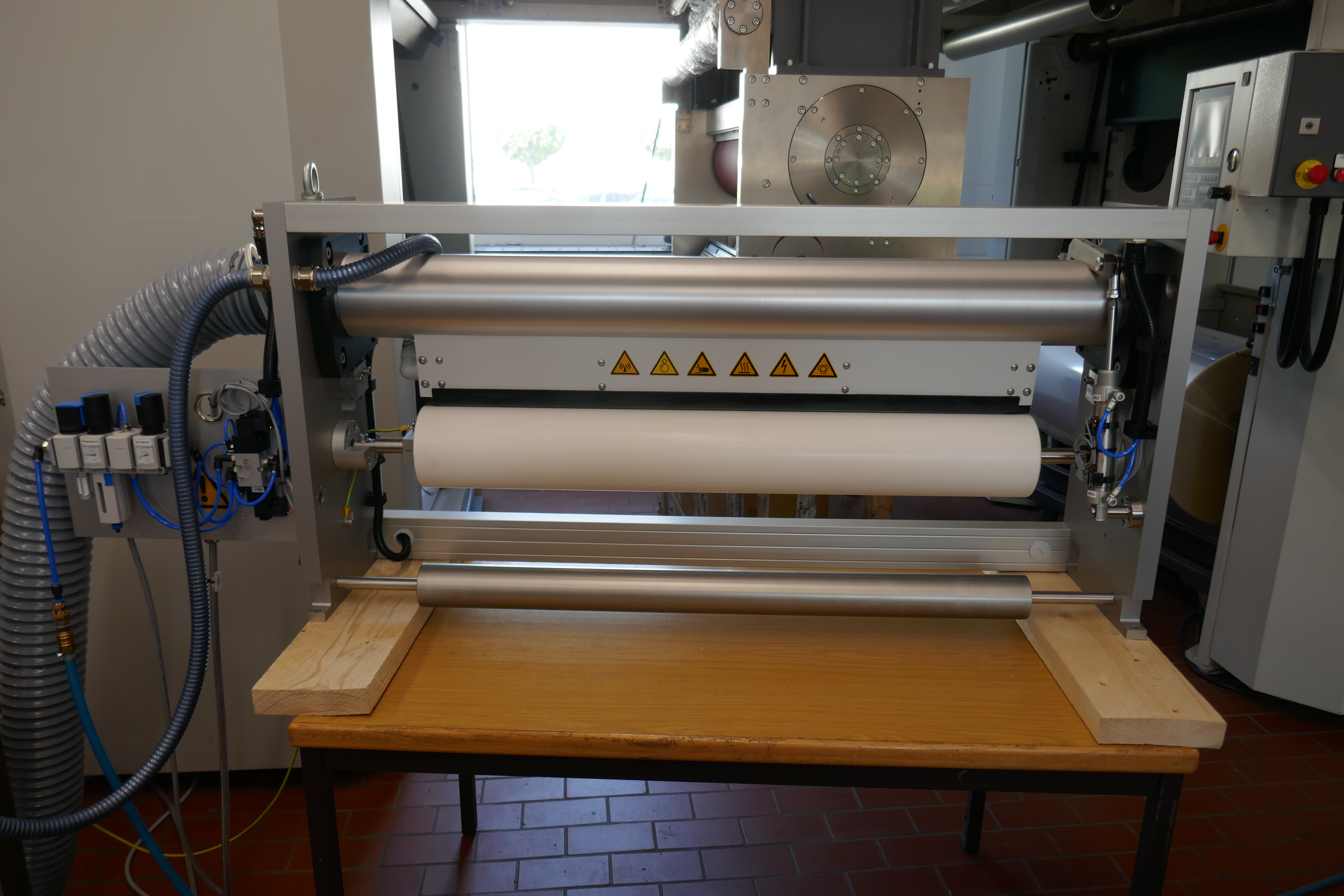

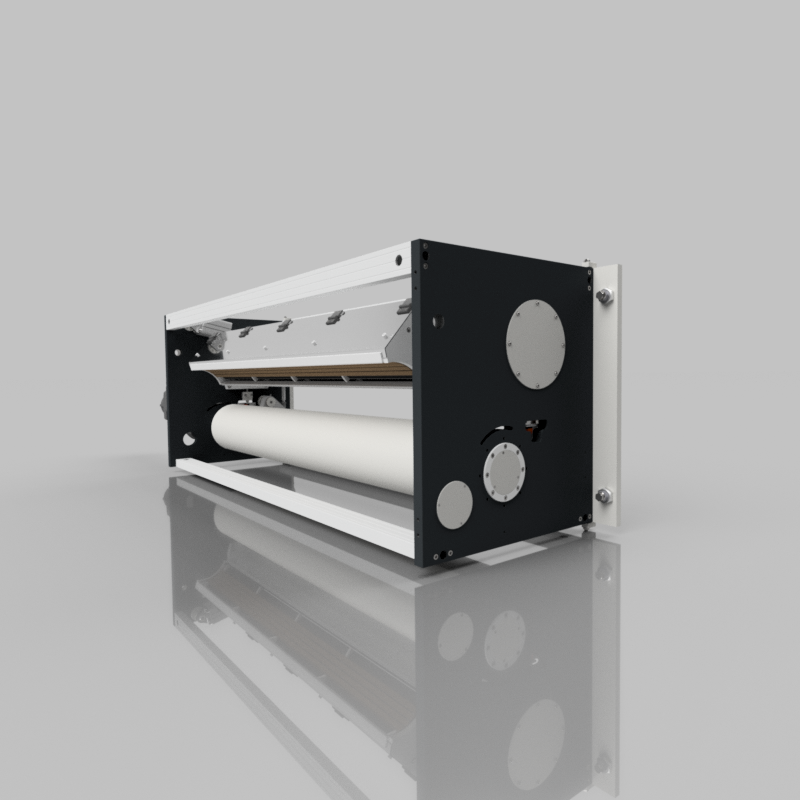

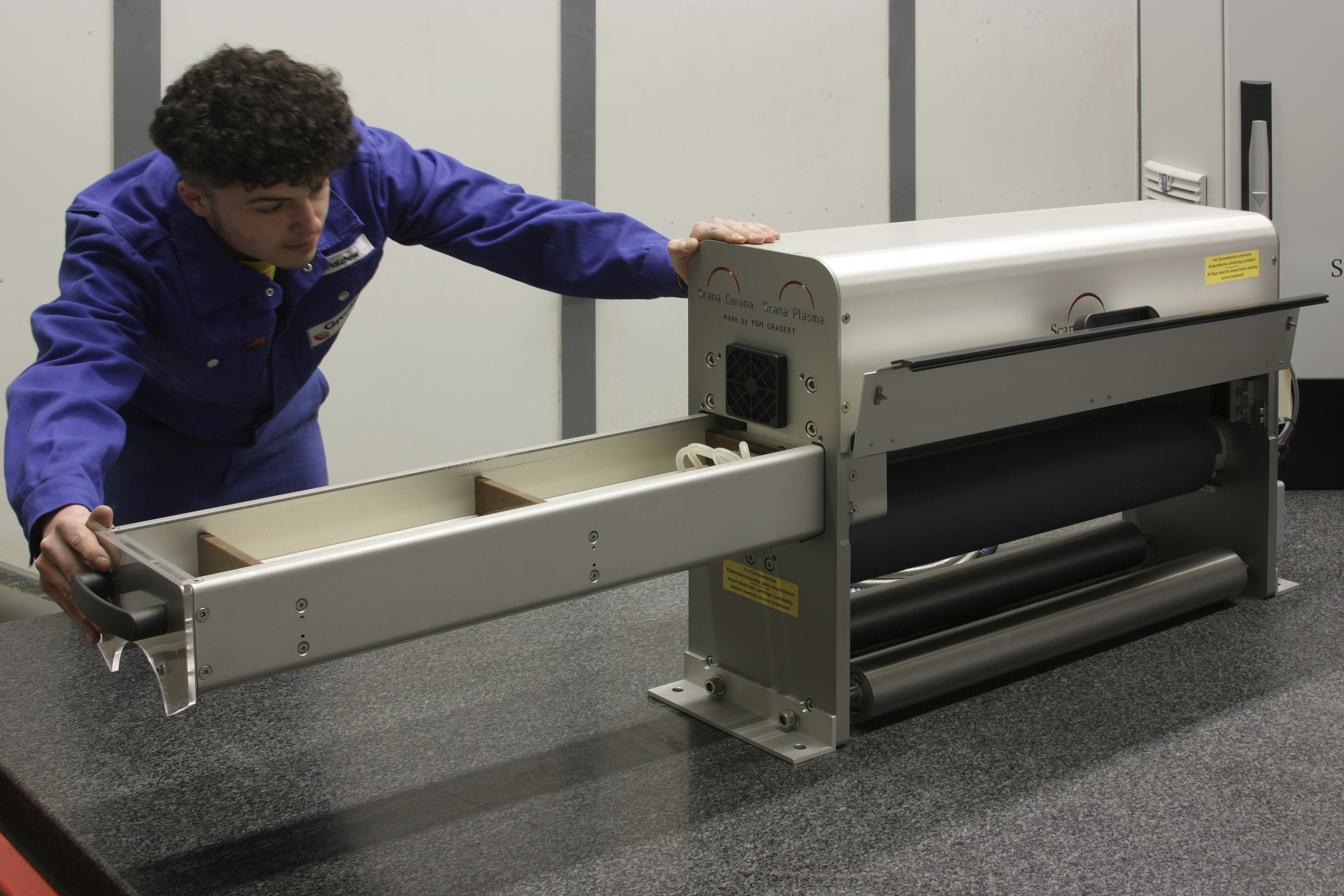

SCS-D SERIES - WITH ELECTRODE INSERT

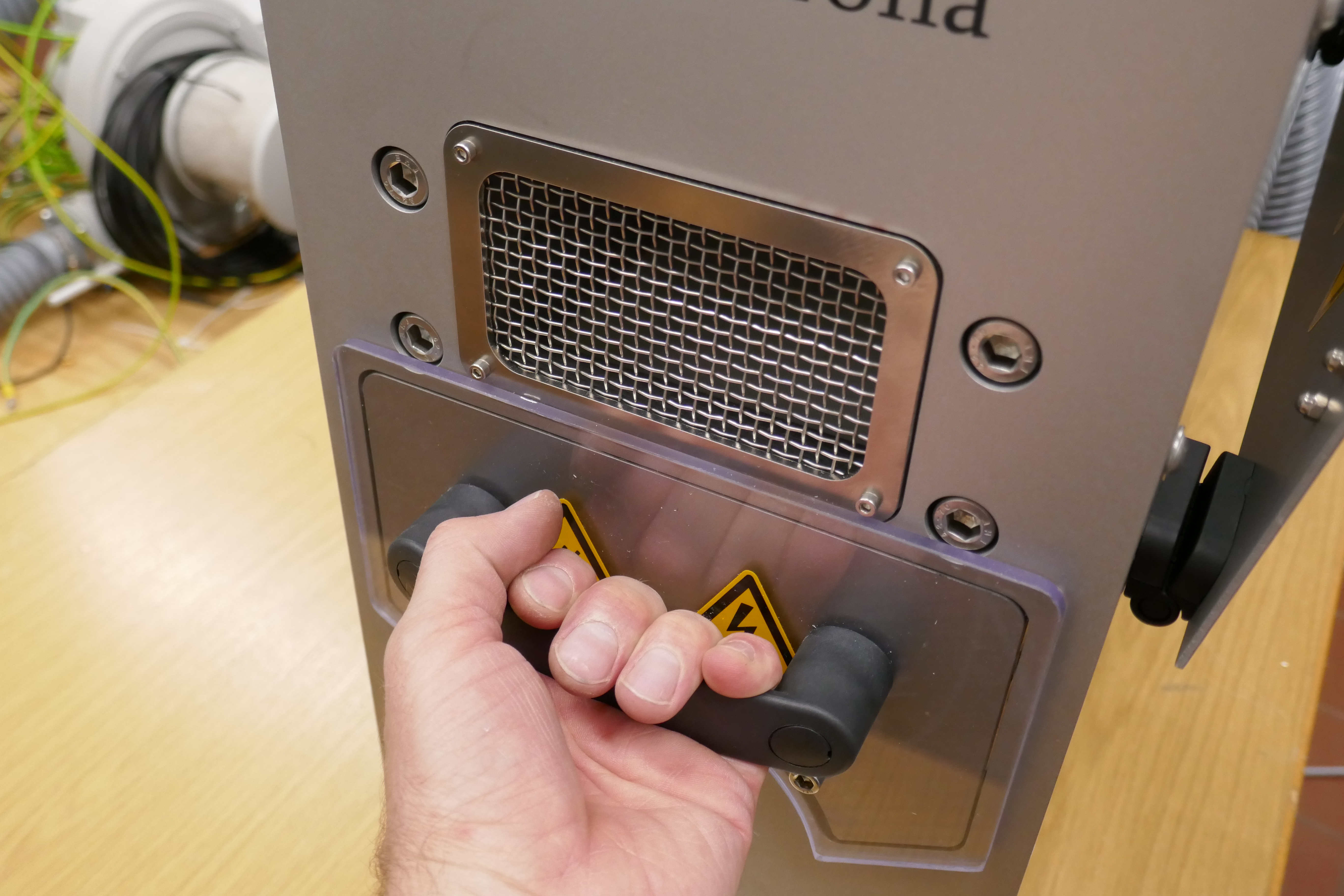

The SCS-D series has a removable electrode insert. This can be easily removed, replaced or modified in case of routine maintenance.

Standard series data:
Version: single-sided
Electrode system: various sizes
Airflow: Asymmetric extraction, active supply air
Electrodes: Ceramic profile CP
Number of ceramic electrodes: up to 5 pieces
Corona roll: up to Ø300 mm
Web width: up to 3 m
Web speed: up to 350 m/min
Electrode pack power: Up to 4 kW/m

Standard options:
Deflecting rolls

Application examples:
Film processing: Printing, laminating, coating

Materials:
Plastic films such as PP, PE, PET, PA, PU, PVC, paper, metallized films,
Metal films

Further options and differing data on request.
